Available Alloys Pure Aluminum: 1050, 1060, 1070, 1100, 1200 Soft & Medium Alloys: 3003, 3004, 3103, 3104, 3005, 3105, 3019, 5005, 5050, 5052, 5251, 5754 Available Dimensions Thickness: 1.5 mm – 6 mm Width: 900 mm – 2000 mm Length: 900 mm – 6000 mm Technical Conditions Raised pattern types available: Five bar; Diamond, Two bar. Available height of raised pattern
Square Sign Posts Available Sizes & Gauges Sizes: 1 1/2″, 1 3/4″, 2″, 2 1/4″, 2 1/2″ Gauges: 12 and 14 Lengths: 2.5′, 3′, 8′, 10′, 12′, 14′ with a length tolerance of +/- 0.25”. Technical Specifications Shape – Square tube formed of 10 gauge (.135” U.S.S. Gauge) or 12 gauge (.105” U.S.S. Gauge) or 14 gauge (.083” U.S.S. Gauge) steel,

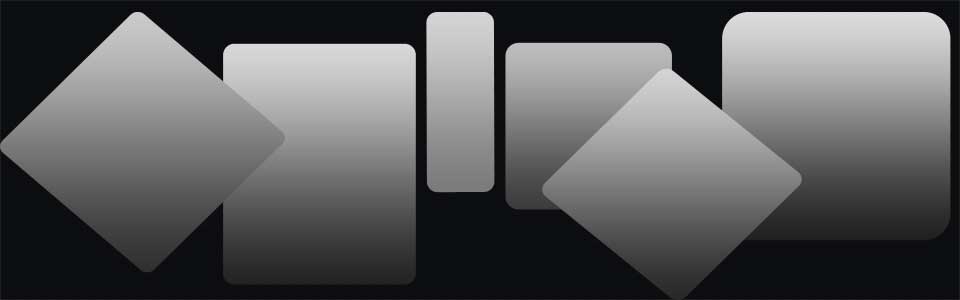

Available Alloys The aluminium sign blanks are cut from aluminium sign sheet material of alloys 5052-H38 or 3105-H38. Thicknesses Minimum thickness of either 1.6 mm or 2.06 mm Fabrication Blanks are cut within a tolerance of 1 mm over the length or width of the blank. The sign blanks are cut to size, corner radii and holes are punched and completely
Les alliages disponibles Aluminum: 1050, 1060, 1070, 1100, 1200 Soft & Medium Alloys: 3003, 3004, 3103, 3104, 3005, 3105, 3019, 5005, 5050, 5052 Available Dimensions Thickness: 0.3 mm – 6 mm Width: 900 mm – 2000 mm Length: 900 mm – 6000 mm Les conditions techniques Embossed patterns available: Stucco, diamond and fluted. Embossing depths available: 0.25 mm ± 0.05 mm
Available Alloys 1100, 1050, 1070, 3003, 3004, 4043, 4043, 5083, 5052, 5056, 2024, 2011, 2017, 6063, 6005, 6061 Dimensions OD Range: 12 mm – 80 mm Thickness Range: 0.80 mm – 10 mm Shapes Pipe, Bar
Anodized sheets and coils supplied by Alummerce will be processed by either coil anodizing or batch anodizing. Coil Anodizing Alloys: 1000, 3000, 5000 Thickness range: 0.5 mm – 3 mm Width: Max 1540 mm Length: 6000 mm Oxide thickness: Flash, 5, 10, 15, 20 microns Finish: Clear Protective Film: PVC protection 75 micron thickness; UV resistant Batch Anodizing Alloys: 1000, 3000, 5000
Available Alloys Pure Aluminum: 1050, 1060, 1070, 1100, 1200 Soft & Medium Alloys: 3003, 3004, 3103, 3104, 3005, 3105, 5005, 5049, 5050, 5052, 5251, 5754, 6061, 6082 Hard & Hard Duty Alloys: 2014, 2014A, 2017A, 2024, 2219, 5083, 5086, 5454, 5456, 7075 Available Dimensions Thickness: 6.3 mm – 304.8 mm Width: 900 mm – 2000 mm Length: 1000 mm – 6000
Available Alloys, Tempers, and Surface Alloys: 1050, 1060, 1070, 1100, 1200, 3003, 5005, 5454, 5754, 6082, 4006, 8006 Temper O– soft, H12, H14, H18 – hard DDQ is available on request Surface finish Mill finish, Anodizing Quality Available Dimensions Thickness: 0.40 mm – 6 mm Diameter: 20 mm – 1200 mm Available Diameters 20 140 170 200 250 300 400
